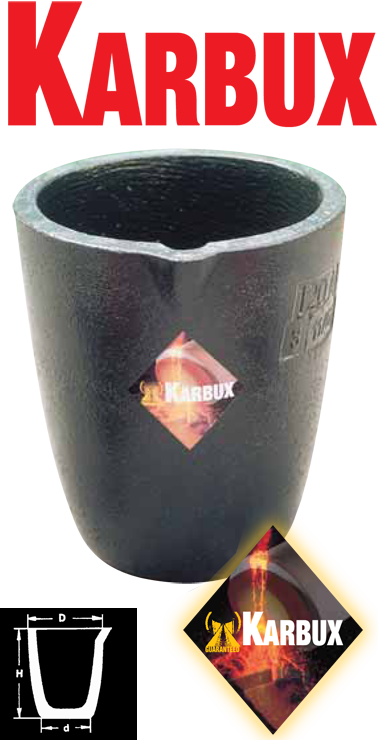

Crucibles / « Crucibles for gas furnace / KARBUX: Silicon carbide crucibles
ARTICLE | SIZE (mm) D x d x H | CAPACITY (KG / CU) | SUPPORT |
A-04 K | 41 x 29 x 51 | gr. 250 | |
A-1/2 K | 70 x 43 x 80 | gr.500 | |
A-1 K | 90 x 55 x 90 | 1 | |
A-2 K | 102 x 65 x 110 | 2 | R.02 S |
A-3 K | 110 x 70 x 130 | 3 | R.02 S |
A-4 K | 115 x 75 x 140 | 4 | R.03 S |
A-5 K | 125 x 85 x 150 | 5 | R.03 S |
A-6 K | 130 x 90 x 165 | 6 | R.03 S |
A-8 K | 155 x 110 x 180 | 8 | R.04 S |
A-10 K | 160 x 115 x 200 | 10 | R.04 S |
A-12 K | 170 x 120 x 210 | 12 | R.04 S |
A-15 K | 180 x 120 x 230 | 15 | R.04 S |
A-16 K | 185 x 125 x 230 | 16 | R.04 S |
A-20 K | 200 x 140 x 255 | 20 | 8051/C.91 |
A-25 K | 220 x 150 x 260 | 25 | 8051/C.91 |
A-30 K | 230 x 160 x 290 | 30 | 8051/C.91 |
A-40 K | 260 x 190 x 310 | 40 | 8051 |
A-50 K | 270 x 195 x 330 | 50 | O122 |
A-60 K | 285 x 200 x 345 | 60 | O122 |
A-70 K | 295 x 205 x 360 | 70 | O122 |
A-80 K | 305 x 215 x 375 | 80 | O122 |
A-90 K | 315 x 225 x 380 | 90 | O122 |
A-100 K | 325 x 230 x 400 | 100 | O122 |
A-120 K | 345 x 245 x 410 | 120 | O122 |
A-150 K | 370 x 260 x 450 | 150 | O122 |
A-200 K | 400 x 285 x 500 | 200 | O122 |
A-300 K | 440 x 315 x 540 | 300 | O122 |
